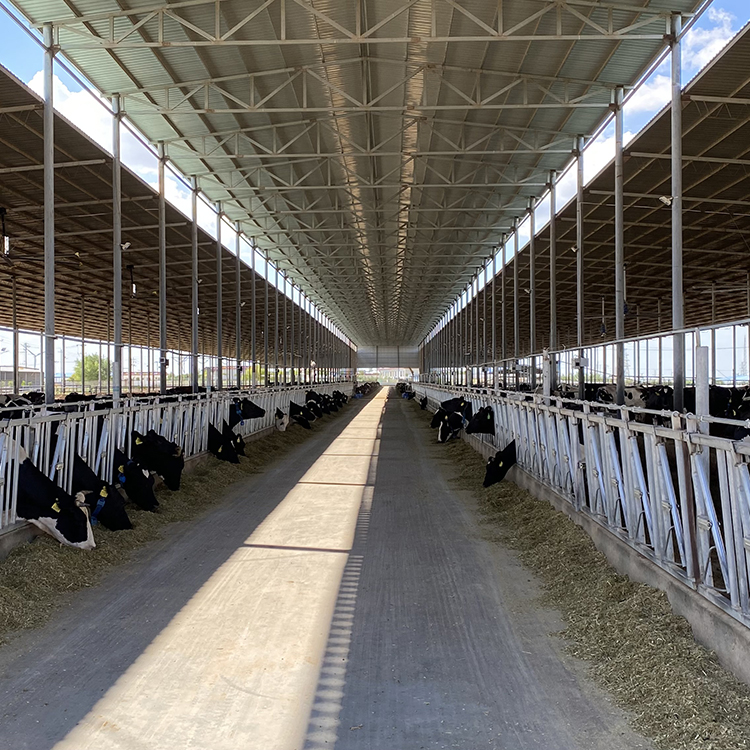

System Overview High pressure fogger cooling system is specifically designed for livestock barn climate control. The integrated unit combines water supply, high-pressure atomization (5-20μm droplets), and smart power management systems. Featuring a copper-core motor, PA12 reinforced tubing (25MPa rating), and 316L stainless steel swirl nozzles, the system achieves 5-8°C temperature reduction within 30 minutes through optimized mist line deployment along barn ceilings.

Key Features

1. All-in-One Smart Console:

   • PLC with HMI touchscreen (15 languages)

   • VFD-driven pump (IE4 efficiency class)

   • 5-stage filtration (50μm → 0.1μm)

   • 304 stainless steel water tank (UV-C optional)

2. Advanced Atomization:

   • Laser-drilled nozzles (0.15mm orifice)

   • Droplet size distribution: Dv50=12μm

   • Non-wetting guarantee: Surface moisture <3g/m²

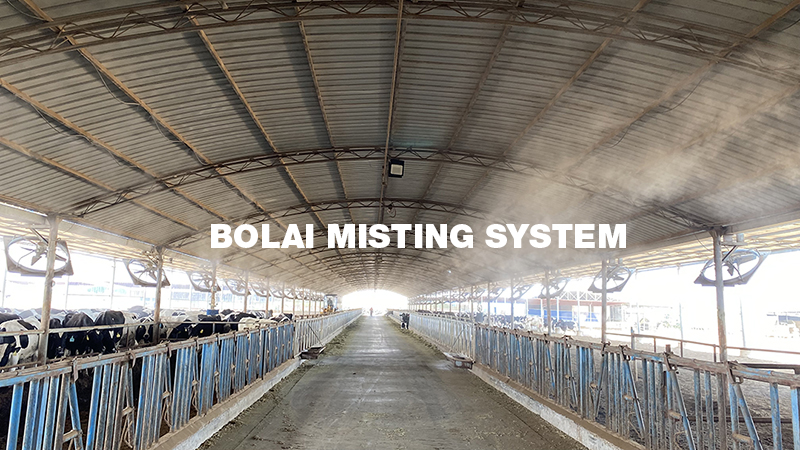

[caption id="attachment_232" align="aligncenter" width="750"] SPRAY SYSTEM[/caption]

Applications Ideal for:

• Dairy farms (free-stall barns, holding areas)

• Feedlot cooling (beef cattle/buffalo)

• Poultry tunnel ventilation augmentation

• Tropical crop protection (rubber/coffee plantations)

• Biosecure composting facilities
